- This filter features DNA®’s Stage 2 kit eliminates the OEM intake snorkel of Honda models and offers higher performance and better intake sound.

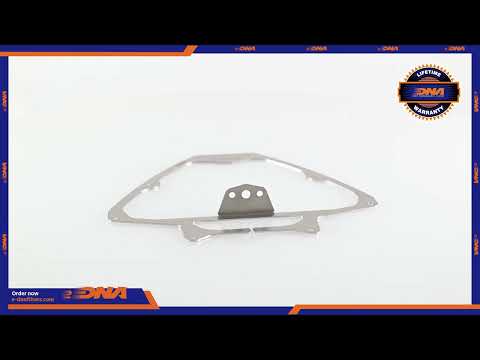

- This Stage 2 kit is designed to replace the stock plastic air box intake cover. Combined with the P-H75SC21-01 (sold separately) will increase the Airflow, Filtering Efficiency, Power, Torque and Throttle response.
- The airflow of this new DNA Stage 2 combined ALWAYS with the DNA Stage 1 Air Filter (P-H75SC21-01) is +44.4% more than the OEM air filter with Honda air box cover applied!
- Stock air box with DNA S2 & S1 air filter flow : 1823.6 lit/min @ 10 mBar corrected @ 25degrees Celsius.
- Stock airbox with stock cover & OEM air filter: 1262.93 lit/min lit/min @ 10 mBar corrected @ 25degrees Celsius.
- This DNA® Stage 2 kit is designed as a High Flow product for: ‘Race use only’.
- Fuel recalibration is suggested.
It is a dirty job, but somebody has to do it! Find out how a DNA High Performance Filter works to protect your engine efficiently, without compromising performance!
The "technology" that our DNA filter uses to clean the air is surprisingly common to all of us. It is part of our body; we use it constantly to stay alive! It is part of the Human respiratory system that filters the air we inhale! Tiny moistened hairs called cilia protect the nasal passageways and other parts of the respiratory tract, filtering out dust and other particles that enter the nose with the breathed air. The DNA filtering cotton media is exactly that, millions of tiny fibers that are oiled!
The "hairy hybrid" as we call it, is a genius combination of cotton fibers per square millimeter. The Tex & Thread, of this unique cotton, is a result of intensive research, by DNA's development engineers. The "hairy hybrid" impregnated with DNA's special filter oil, is transformed into the remarkable DNA media that provides very high filtering efficiency and extremely high flow rates.
We designed the DNA Filter to acquire a positive static charge as the air passes through the pleated and oiled filter media. The weak static charge will very efficiently "pull" on the oiled cotton fibers, the debris and dust that are in the air; remember in science class at school, the pen rubbed against wool that can attract small bits of paper, experiment? This is exactly what happens, as the air flows through the filter, debris even as small as 5 microns will change course and stick onto the fibers, regardless if the "holes" between the fibers can be as large as 150 microns! The first layer of debris on the fibers will then absorb some oil, get statically charged and become part of the filtering media! And guess what, it will start attracting new debris assisting the cotton media in its filtration chore!Finally debris will continue building up on the surface of the filter, as air passes through, until it is totally covered (see photos below).
Our filters have being successfully tested even in the harshest environments during the DAKAR Rally! Through Argentina up to the Andes, and down to the Atacama Desert in Chile. The dreadful "Fesh-Fesh" (Guadal) fine powder desert sand of the Atacama Desert, was succesfully kept out of the race engines, outperforming the foam filters!
So the myth is busted, the DNA filters can successfully be used in any environment, on and off the road, in the desert or the outback, DNA will be there to protect you.
The DNA filter will also smoothen out the air flow stream, as it passes through the filter, reducing turbulence and sending smooth clean & fresh air towards the engine intake, increasing torque and power. Additionally to the high air flow, smooth and unified air flow is very important. This explains why we see a decrease in the power output when testing a bike or car on the dyno "without" a filter as the circulation of the air in the air box is disturbed and the result is turbulence and low power output.
- Mass of the air,
- Flow of the air,
- Temperature of the air,
- Absolute air pressure,
- Differential air pressure,
- Speed of the air at various points (Pitot tubes),
- Absolute humidity of the air.
The complete procedure is automated and computer controlled, eliminating human errors.
